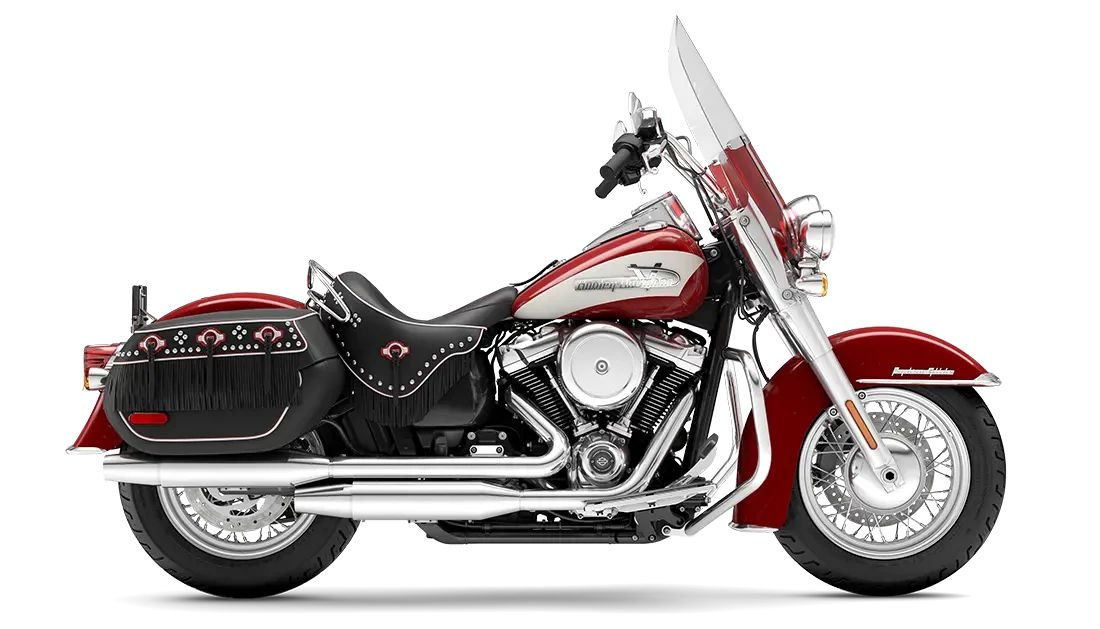

‹ Home › Inventory › Harley-Davidson® Hydra-Glide Revival 2024

To celebrate its 75th anniversary, a champion of the Panhead era is resurrected with the release of the limited-edition 2024 Hydra-Glide Revival motorcycle.

Specifications

Dimensions

add remove
- Length:

  95.1 in
- Overall width:

  36.6 in
- Overall height:

  57.8 in
- Seat height, unladen:

  27.0 in
- Ground clearance:

  4.6 in
- Rake (steering head):

  30
- Trail:

  5.7 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  130/90B16,73H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  710 lbs
- Weight, in running order:

  742 lb
- Luggage capacity – volume:

  1.5 cu ft (0.043 m³)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Fork angle:

  30
- Reserve fuel capacity, fuel injection:

  1.0 gal
- Gross axle weight rating, front:

  450 lbs
- Gross axle weight rating, rear:

  730 lbs
- Transmission capacity:

  1 qt. (.95 l )
- Primary chain case capacity:

  1.25 qt. (1.18 l )
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Air cleaner:

  Screamin' Eagle® round high-flow air cleaner with oiled-cotton filter element.
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
- Lubrication system:

  Pressurized, dry-sump with oil cooler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  118.7 ft-lb
- Engine torque (RPM):

  3,000
- Horsepower:

  94 HP / 70 kW @ 4750 rpm
- Lean angle, right (deg.):

  27.4
- Lean angle, left (deg.):

  27.4
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100 km)
- Lean angle testing method:

  J1168
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
- Final drive:

  Belt, 32/66 ratio
- Clutch:

  Mechanical, 10 plate wet, assist & conventional
- Transmission:

  6-Speed Cruise Drive®
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Chrome Steel Laced
- Wheels, rear type:

  Chrome Steel Laced
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
- Frame:

  Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
- Swingarm:

  Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer
Electric

add remove
- Lights (as per country regulation), Headlamp:

  All LED, low beam, high beam and signature position lamp
- Lights (as per country regulation), Tail/Stop:

  Incandescent Zeppelin tail lamp
- Lights, front signal lights:

  Incandescent bullets
- Lights, rear turn signals:

  Incandescent bullet light bar
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
- Battery:

  Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
- Charging:

  Three-phase, 42 Amp system (390 Watts @13 Volts, 1000 rpm, 546 Watts max power @ 13 Volts, 2000 rpm)
- Starting:

  1.6 kW electric with solenoid shift starter motor engagement
- Auxiliary lamps:

  LED fog
- Electric power outlet:

  USB A-type; output 5V at 2.4A

Get a quote

Please waitseconds before submitting another form. cancel

First name Required

Last name Required

Phone Required

Email Required

Your inquiry

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Disclaimer: Any accidental mention of Harley Davidson is meant as Harley-Davidson®
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
Price, if shown and unless otherwise noted, represents the Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer vehicle freight/preparation, dealer document preparation charges, labor, installation, or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected; contact dealer for more details. Options such as color are available at additional cost. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
